Returns the sine of the radians argument, which we'll call x. This is the most mathematically-intense function, and I have to thank Ian Griffiths again for doing the hard work behind the analysis presented here.

*The MacLaurin Series*

Altair BASIC's calculation of the sine function is based upon the MacLaurin series. A MacLaurin series is an expansion of functions whose derivatives are continuous.

Now, how do we use this series for the sine function? It's going to look like this :

Well, we know that the derivative of sin(x) is cos(x), and the derivative of cos(x) is -sin(x). We also know that sin(0)=0, and cos(x)=1. Therefore the series can be reduced to :

Simplifying a bit further, and limiting the number of terms to a reasonable approximation, we get down to :

**Scaling**

To make the code in this and the next section smaller, our first step is to scale our radians argument x into a new variable u that is in the range ** -1 < u< 1**. To do this we first divide x by 2p and then lose the integer part of that number.

Divide x (in FACCUM) by 2p to get u. | ||||

0C95 | CD020A | Sin | CALL FPush | Push x |

0C98 | 014983 | LXI B,8349 | BCDE=2p | |

0C9B | 11DB0F | LXI D,0FDB | ||

0C9E | CD120A | CALL FLoadFromBCDE | rhs = 2p | |

0CA1 | C1 | POP B | lhs = x | |

0CA2 | D1 | POP D | ||

0CA3 | CD3109 | CALL FDiv+2 | u=x/2p | |

Lose the integer part of u. | ||||

0CA6 | CD020A | CALL FPush | ||

0CA9 | CDA20A | CALL Int | rhs = INT(u) | |

0CAC | C1 | POP B | lhs = u | |

0CAD | D1 | POP D | ||

0CAE | CD0C08 | CALL FSub+2 | u=u-INT(u) |

*Quadrantization*

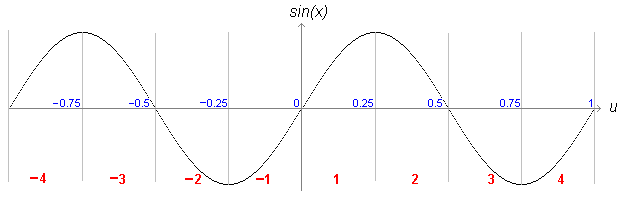

The second part of the algorithm is an optimisation to reduce *u* to a 'quadrantized' value, *q*, so called because it lies within the two quadrants either side of the origin, ie * -0.25<q<0.25*. Here's a little graph showing sin(x) against u, with the quadrant numbers shown in red.

To get from *u* to *q*, we don't need to scale again but we do take advantage of two trignometric identities : *sin(-x) = -sin(x)*, and *sin(x)=sin(pi-x)*.

<fixme: insert Monte's explanation here>

So we have our value *q*. Here's another graph showing *sin(x)* against the quadrantised value *q*.

**fixme: the comments inlined below are train-of-thought and should not be used. I haven't quite worked this out.**

Firstly we subtract from 0.25 to get x from -0.75<=x<1.25 | ||||

0CB1 | 01007F | LXI B,7F00 | BCDE=0.25 | |

0CB4 | 51 | MOV D,C | ||

0CB5 | 59 | MOV E,C | ||

0CB6 | CD0C08 | CALL FSub+2 | ||

If x is +ve then skip ahead having set the carry flag to indicate we do not need to negate | ||||

0CB9 | EF | RST FTestSign | ||

0CBA | 37 | STC | Set carry (ie no later negate) | |

0CBB | F2C30C | JP NegateIfPositive | ||

x is between -0.75 and 0. Here we add 0.5 to get x between -0.25 and 0.25 and signal that negation is required | ||||

0CBE | CD0108 | CALL FAddOneHalf | ||

0CC1 | EF | RST 5 | ||

0CC2 | B7 | ORA A | Resets carry (ie later negate) | |

Preserve carry flag and negate x if it's +ve. | ||||

0CC3 | F5 | NegateIfPositive | PUSH PSW | |

0CC4 | F4FA09 | CP FNegate | ||

Adding 0.25 | ||||

0CC7 | 01007F | LXI B,7F00 | BCDE=0.25 | |

0CCA | 51 | MOV D,C | ||

0CCB | 59 | MOV E,C | ||

0CCC | CD1208 | CALL FAdd+2 | ||

Final negate (depends on above). | ||||

0CCF | F1 | POP PSW | ||

0CD0 | D4FA09 | CNC FNegate |

*Progression Calculation*

<fixme>

Push x. | ||||

0CD3 | CD020A | CALL FPush | ||

Push x^2 | ||||

0CD6 | CD1D0A | CALL FAccToBCDE | ||

0CD9 | CDE508 | CALL FMul+2 | x = x*x | |

0CDC | CD020A | CALL FPush | Push x*x | |

Let q be the first term of the Taylor series. | ||||

0CDF | 21030D | LXI H,TAYLOR_SERIES | ||

0CE2 | CD0F0A | CALL FLoadFromMem | ||

Restore x^2 | ||||

0CE5 | C1 | POP B | ||

0CE6 | D1 | POP D | ||

0CE7 | 3E04 | MVI A,04 | ||

0CE9 | F5 | TaylorLoop | PUSH PSW | Push #terms remaining |

Push x^2 | ||||

0CEA | D5 | PUSH D | Push BCDE | |

0CEB | C5 | PUSH B | ||

q = (q * x^2) + next term | ||||

0CEC | E5 | PUSH H | ||

0CED | CDE508 | CALL FMul+2 | ||

0CF0 | E1 | POP H | ||

0CF1 | CD200A | CALL FLoadBCDE | ||

0CF4 | E5 | PUSH H | ||

0CF5 | CD1208 | CALL FAdd+2 | ||

0CF8 | E1 | POP H | ||

Restore x^2 to BCDE. | ||||

0CF9 | C1 | POP B | ||

0CFA | D1 | POP D | ||

0CFB | F1 | POP PSW | Pop #terms remaining into A. | |

0CFC | 3D | DCR A | Decrement #terms and loop back if not | |

0CFD | C2E90C | JNZ TaylorLoop | done all 4 of them. | |

Finally multiply q by x. | ||||

0D00 | C3E308 | JMP FMul |

The modified Taylor series used by SIN.

0D03 | BAD71E86 | TAYLOR_SERIES | DD 39.710670 | |

0D07 | 64269987 | DD -76.574982 | ||

0D0B | 58342387 | DD 81.602234 | ||

0D0F | E05DA586 | DD -41.341675 | ||

0D13 | DA0F4983 | DD 6.283185 |
